Chloride® CP70Z - AC UPS
CP as Customized Product. The most advanced product in terms of possibilities.
UPS TypeAC IEC/NEMA
Ratings5 to 500+ kVA
TechnologySCR/IGBT
Chloride® CP70Z - AC UPS
CP as Customized Product. The most advanced product in terms of possibilities.
UPS TypeAC IEC/NEMA
Ratings5 to 500+ kVA
TechnologySCR/IGBT
You are currently viewing: North America Products
Market & Industry Type
Oil & Gas industries, offshore and onshore
Refining and petrochemical plants
Power generation plants
Rail transport
Process industries
Downloads
Features & Benefits
Read lessAvailability
Maintainability
The easiest on the market with total components front access.
Reliability
Innovative internal temperature reduction, through dual redundant cooling channels.
Multiplied redundancy with Chloride® Patented Smart Parallel Switching function that dynamically controls paralleled systems.
Key advantages
User friendly
Large color touch screen with 2000-event exportable log.
One of the best on the Industrial UPS Market.
USB access
Export of all the recorded events using USB flash drive.
Memorization of complete electronic settings for future maintenance needs.
Batteries compatibility
Innovative full integration with SMC/Salt Batteries (Sodium Metal Chloride Batteries).
Full compatibility with Lead-acid, nickel-cadmium batteries, sealed or vented and Lithium-Ion.
Low THDi
6 - or 12-pulse thyristor rectifier.
Down to 5% THDI in 12-pulse SCR system with harmonic filters.
Life time
Designed for 20+ years of continuous operation with appropriate maintenance plan.
Technical Specification
Read lessInput
AC Voltage (3-phase only)
3 x 480 V, 3 x 208 V (other available on request)
Voltage Tolerance
+/- 10%
Frequency
50 Hz (60 Hz)
Frequency Tolerance
+/- 5%
Inrush current
≤ 10 x ln
Output
AC Voltage Single phase
1 x 230 V (220, 240) ; 1 x 110 V (115, 120) (other available on request)
AC Voltage Three phase
3 x 400 V (380, 415) ; 3 x 220 V (200, 208, 230) (other available on request)
Frequency
50 Hz (60 Hz)
Frequency stability with internal oscillator
+/- 0.05%
Frequency stability with reserve synchronism
+/- 3 % (from 1 to 5% adjustable)
Voltage stability (for 0 to 100 % load variation): Static
Voltage stability (for 0 to 100 % load variation) : Static
Voltage stability (for 0 to 100 % load variation): Dynamic
VFI SS 111 as per IEC/EN 62040-3, class 1
Inverter overload capability: 1 minute
150 % of nominal power
Inverter overload capability: 10 minutes
125 % of nominal power
Short circuit clearance (in % of nominal current): 1-ph output
250 % / 100 ms - 175 % / 5s
Short circuit clearance (in % of nominal current): 3-ph output Ph-N
315 % / 100 ms - 220 % / 5s
Short circuit clearance (in % of nominal current): 3-ph output Ph-Ph
190 % / 100 ms - 135 % / 5s
Harmonic voltage distortion: With 100% linear load
< 3%
Harmonic voltage distortion: With 100% non-linear load
SS as per IEC/EN 62040-3
Allowable power factor
0.5 lagging to 0.5 leading
Battery
Battery
Salt Metal Chloride, Lead acid or nickel cadmium, vented or recombination
Autonomy
From few minutes to several hours, on request
Battery current limitation (typical, float, & boost modes)
0.1 C (lead-acid battery) / 0.2 C (nickel-cadmium battery) / 0.2C (sodium)
General Data
Operating temperature
32 to 104 °F (More on request)
Storage temperature
-4 to 158 °F
Relative humidity
< 95% non condensing
Operating altitude
3200 feet max without derating (other available on request)
Cooling
Forced ventilation
Efficiency
Up to 90% according to rating
External protection
NEMA 1 (more on request)
Internal protection
Protection against unintentional direct contact, as per IEC 60590-1/62477-1
Cabinet color
Grey RAL 7032 (other available on request)
Dimensions
Varying according to ratings and options
Ratings
110-125 Vdc
5 / 10 / 20 / 30 / 40 / 50 / 60 kVA
220-250 Vdc
10 / 20 / 30 / 40 / 50 / 60 / 80 / 100 / 120 / 160 / 200 / 250 / 320 kVA
400 Vdc
40 / 50 / 60 / 80 / 100 / 120 / 160 / 200 / 250 / 320 / 400 / 500 kVA
Standards
UL 1778, fifth edition 2014
Standard for safety - Uninterruptible Power systems
NEMA PE1 2012
From few minutes to several hours, on request
Battery current limitation (typical, float & boost modes)
Uninterruptible power systems (UPS) - Specification and performance verification
UL certification
Available upon request
Options
Wide range of options
Refer to datasheet in download section
CP70Z presentation

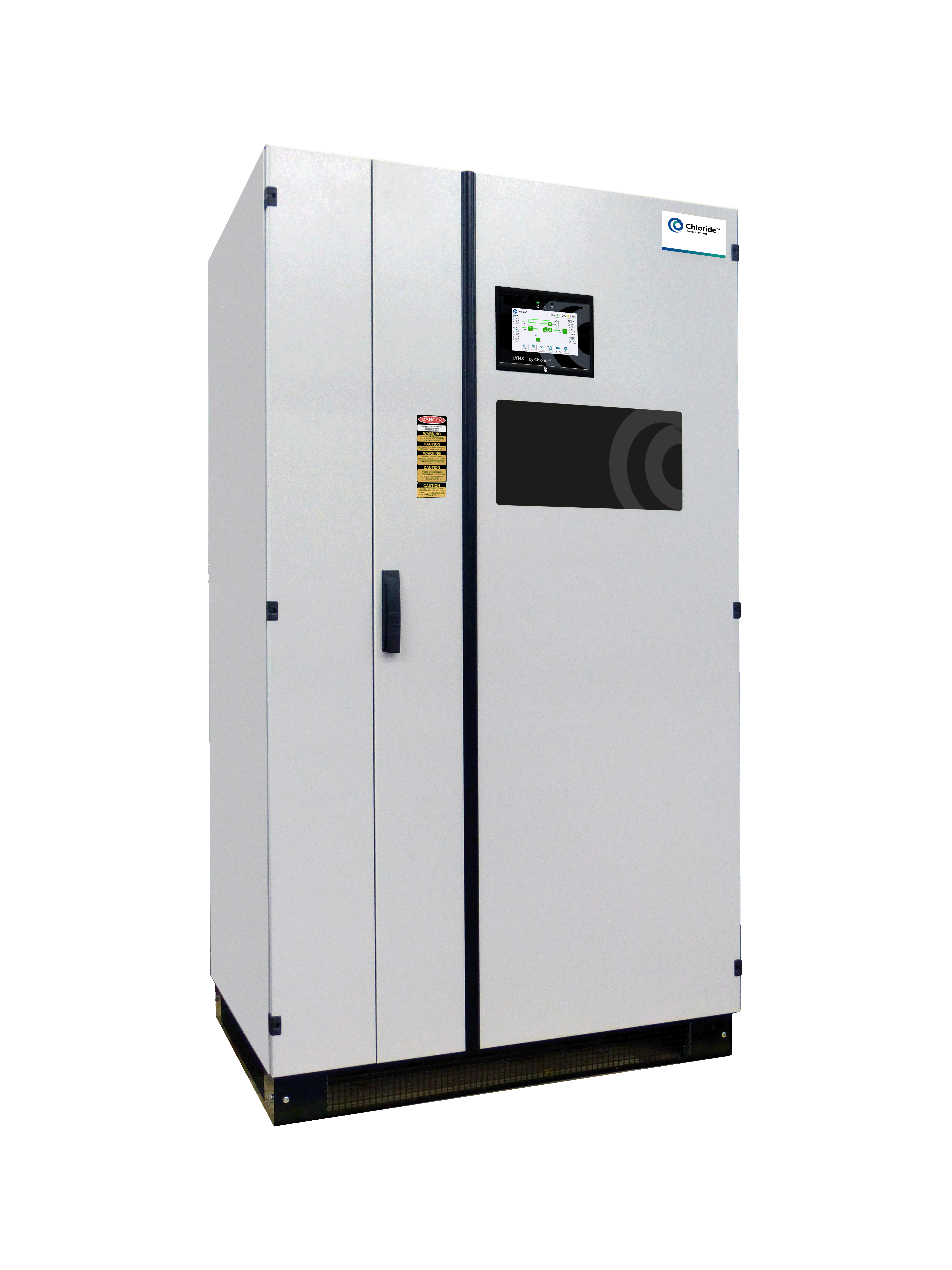

Watch a video presentation of the CP70Z 40 kVA AC UPS featuring our brand new HMI: LYNX.
